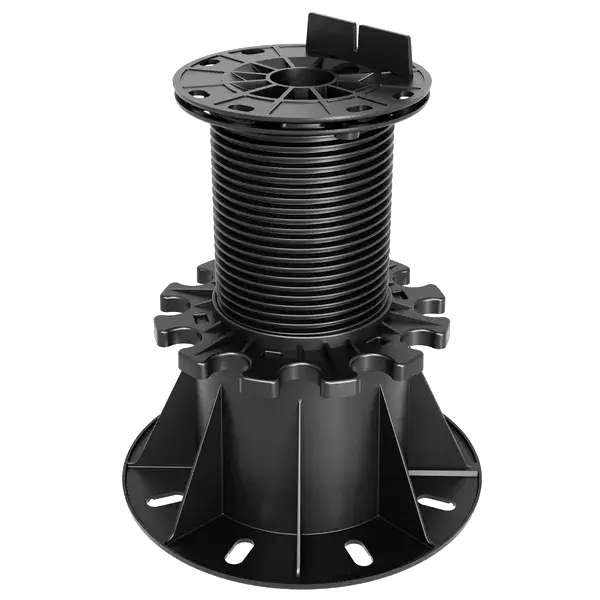

StrataRise Self-Level High-Range Pedestals are designed for high rise installations of Joist supported Decks or for Pavers and Deck Tiles. With a reinforced raised level base stand and over 100mm (4") of adjustment as standard, this range starts from an installation height of 121mm (4.76") and adjusts up to 121mm (8.90") as standard. The installation height can be increased in steps of 100mm (4") using Stratarise EX100 QuickClick extensions as required.

Please note - for high rise installations it is essential to ensure the structure is anchored to prevent lateral movements.

StrataRise Multi-Level pedestals make it easy to achieve perfect flatness of the final floor, deck or paved area. The system is very easy to use and aids quick, precise and professional installation.

Each support is composed of a threaded head section, with a vertical flange for fixing joists into position, or with 4 tabs, 4mm (5/32") in width, for tile or paver spacing. Spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or at T-joints and sides. The pedestals heads allow auto adjustment for slopes up to 5 degrees.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.

The large 8" (200mm) reinforced raised base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional 3mm (1/8") thick anti-slip, cushioning, rubber base ring is available for use on membranes, etc. This effectively reduces transmitted noise where pavers and decks are mounted on balconies or roof areas.

We recommend the use of our optional acoustic cushioning ring for the support head area for tile and paver installations. These help to bed corners securely, prevent any rattling, and reduce transmitted noise through the support system.

StrataRise 121266 Mid-Range pedestal supports are tested to withstand a maximum load of 1978lbs (897Kg) at their weakest setting, i.e. maximum height adjustment with just one thread engaged, and more at lower adjustments.

StrataRise Pedestals ... the professional's choice!
