STRATARISE PEDESTALS
3452LP-SL-DF Low Profile Self-Levelling Paver Support Pedestals
Mid/Low-profile Self-levelling Paver Pedestal - Adjustable from 34 to 52mm (1.34" - 2.05") - for low threshold heights on sloping surfaces
HEIGHT
34–52mm
SLOPE
0 – 5 %
LOAD
650 kg
Product Overview & Features
The Low-Profile 3452 self-levelling pedestal, with auto adjustment for slopes from 0 to 5%, is a specially designed support for use on sloping areas where low threshold heights are required. Each support is composed of a threaded self-levelling head section, with 4 tabs 4mm (5/32") in width for tile or paver spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centers of large slabs, or on sides.

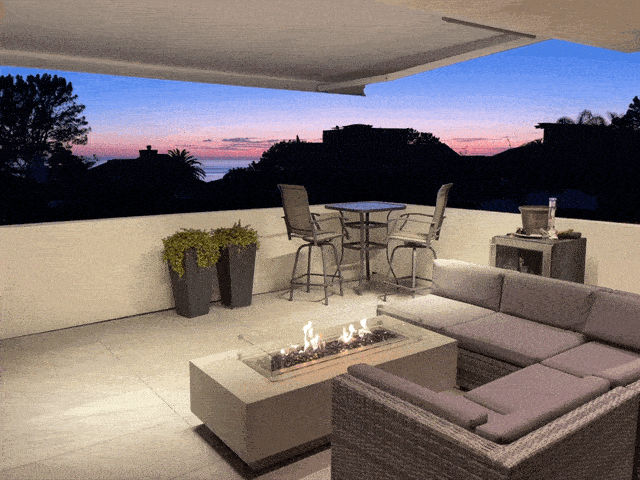

This support is particularly suited for installations of decking and patio areas on sloping flat roofs as well as for general use on sloping surfaces both externally and internally. Each support is composed of a threaded self-Leveling head section, with 4 tabs that are 4mm (5/32") in width for tile, slab or paver spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centers of large slabs, or at edges.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation. As standard, each Low-Level 3452 pedestal comes complete with one 9mm (0.35") extender ring (this can be fitted by lifting the head out of the base, inserting the ring and replacing the head).
The large 200mm (8") base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where pavers are mounted on balconies or roof areas.
We recommend the use of our optional acoustic cushioning rings for the support head area for tile and paver installations. These help to bed tile corners securely, prevent any rattling, and reduce transmitted noise through the support system.
TESTED LOAD
1430 lbs / 650 Kg
3452LP Low-profile Self-levelling Paver Pedestal supports are tested to withstand loads of 1430 lbs (650Kg) at their weakest setting, (i.e. maximum height adjustment with just one thread engaged).
DESIGNED FOR THE PROFESSIONAL
3452LP Low-profile Self-levelling Paver Pedestal supports are tested to withstand loads of 1430 lbs (650Kg) at their weakest setting, (i.e. maximum height adjustment with just one thread engaged).
TECHNICAL DATA
Specifications
Load tested to 1,430 lbs (650 kg) at maximum height with a single thread engaged. Full data sheets and certificates available on request.
REFERENCE
3452LP-SL-P4-30
SLOPE AUTO-LEVEL
0 – 5 %
SPACER TABS
4 × 4 mm
PACK QUANTITY
30 units
HEIGHT RANGE
34 – 52 mm
BASE DIAMETER
200 mm
LOAD TESTED
650 kg
PALLET QUANTITY
1,200 units
APPLICATION
Suitable for laying over membranes and insulating panels
Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.
The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.
Available in two versions, this versatile pedestal support can be used with any type of self-supporting tile or paver.
